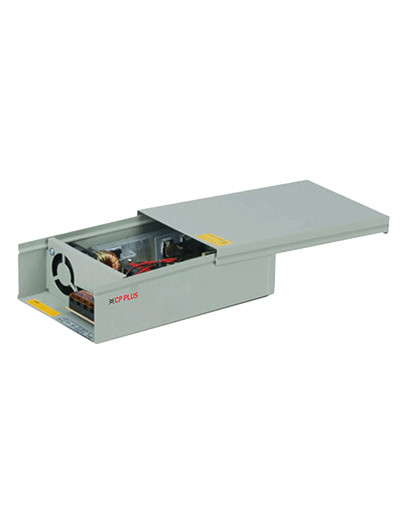

CPPLUS CCTV SMPS 16CH CP-DPS-MD200P-12D New Arrival

(0 Review)

0 Orders

₹1,350 ~~₹2,250~~

GST : 0%

CP-DPS-MD200P-12D

Metal Case Power Supply (Premium Series)

• Wide range of Input voltage 190~250V AC

• Add more cameras with higher power budget 12V, 20A

• Built-in EMI filter to nullify interference

• Voltage regulator switch for voltage adjustment

• Protections: Overload / Over Voltage / Short Circuit

• Metal Housing for uniform/quick heat dissipation

Stock:

Stock

Weight : 0.5 KG

In Stock

Buy Now

Related Product

View All

Feature Specification
Input voltage 190~250V
AC Output voltage 12V DC
Current Range 0~20A
Rated Power 240W
Ripple & Noise (max.) 100mVp-p
Voltage Adj. Range 11.4~13.2V
Line Regulation ±1.0%
Voltage Tolerance ±2.0%
Setup Rise time 600ms, 30ms at full load
Hold Up Time (Typ.) 13ms at full load
Load Regulation ±5.0%
Temperature coefficient ±0.03%/°C (0~50°C)
Frequency Range 47~63HZ
Efficiency (Typ.) 84%
AC Current (Typ.) 5A/115VAC 3A/230VAC
Inrush Current (Typ.) 20A/115VAC 40A/230VAC
Over Load 110~200% rated output power, Protection type: Shut down O/P, re-power
Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Working Humidity 20~90% RH Non-condensing
Vibration 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes
Dimension 196(L) x 114(W) x 55mm(H)
Store temperature -20~+85°C, 10~95%RH
Working temperature -20~+40°C
Withstand Voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
