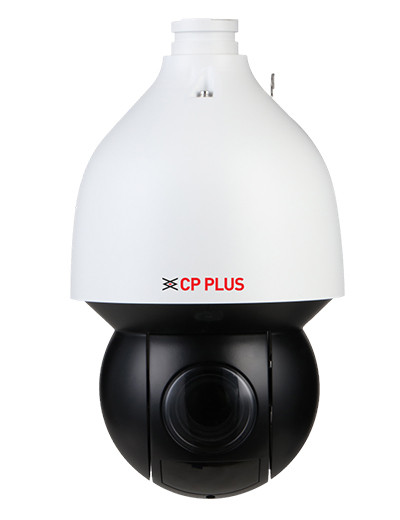

| mage Sensor | 1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters) |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Max Aperture | F1.6–F4.0 |
| S/N Ratio | ≥55 dB |
| RAM | 512 MB |
| ROM | 256 MB |
| Minimum IR | Color: 0.005 [email protected], B/W: 0.0005 [email protected], 0 lux (IR light on) |
| Focal Length | 4.5 mm–144 mm |
| Focus Control | Auto, semi-auto, manual |
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp |
| Angle of View | H: 58.4°–3.0°, V: 33.4°–1.7°, D: 66.4°–3.4° |
| Close Focus Distance | 0.1 m–1.5 m |
| Iris Control | Auto, Manual |
| Resolution | 2MP (1920 × 1080), 960p (1280 × 960), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288) |
| DORI Distance | Lens 4.5 mm–144 mm: 1986mm (Detect), 785mm (Observe), 398mm (Recognize), 198mm (Identify) |
| Electronic Shutter | 1/1 s–1/30,000 s |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Optical Zoom | 32× |
| Digital Zoom | 16x |
| Bit Rate | H265: 25 kbps–6400 kbps, H264: 64 kbps–10496 kbps |
| Image Rotation | 180° |
| Pan/ Tilt Range | Pan: 0° to 360°, Endless, Tilt: –15° to +90°, Auto flip 180° |
| Power-off Memory | Support |
| SMD | Support |
| Day/Night | Auto (ICR)/Color/B/W |
| Video Format | PAL/NTSC |
| OSD | Camera title, Date & Time |
| Manual Speed | Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s |
| Noise Reduction | 2D NR/ 3D NR |
| Preset Speed | Pan: 400°/s, Tilt: 300°/s |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Special Features | Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
| Privacy Mask | Up to 24 areas can be set, with up to 8 areas in the same view |
| Defog | Electronic |
| Idle Motion | Pattern, Preset, Scan, Tour |
| Stream Capability | Quad stream |
| IR Number | 4 IR |
| IR | 180 Mtr. |
| IR Control | Zoom Prio, Manual, Smart IR, Of |
| Gain Control (AGC) | Auto, Manual |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream 1) |
| Bit Rate Control | CBR/VBR |
| Frame Rate | Main stream: 1080p/720p/D1@1–25fps Sub stream 2: 1080p/720p/D1 @1–25 fps Sub stream 3: D1@1-25fps Sub stream 4:D1@1-25fps |
| Motion Detection | Support |
| Audio Compression | PCM, G.711A, G.711MU, G.726, MPEG2- Layer2, G.722.1, AAC |
| Auto Tracking | Support |
| ROI | Support |
| Ethernet | 1 × RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| IVS (Optional) | Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection |
| Protocols | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| Alarm I/O | 2/1 |
| Alarm Linkage | Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output |
| Alarm Event | Motion/Tampering detection, Audio detection, Network disconnection detection, IP conflict detection, Memory card state detection, Memory space detection |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Tracking Trigger Event | Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly |
| Browser | IE, Chrome, Firefox |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| Certificates | ISO9001 |
| Power Source | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Power Consumption | Basic: 8 W Max: 18.5W (illuminator on) |
| User/ Host | 20 (total bandwidth: 64 Mbps) |
| Weatherproof Standard | IP67, IK10, TVS 6000V lightning proof, surge protection, voltage transient protection |
| Operating Temperature | –40°C to +70°C |
| Operating Humidity | ≤ 95% (RH) |
| Dimension | 332 mm × Φ190 mm |
| Weight | 4.6 kg |
